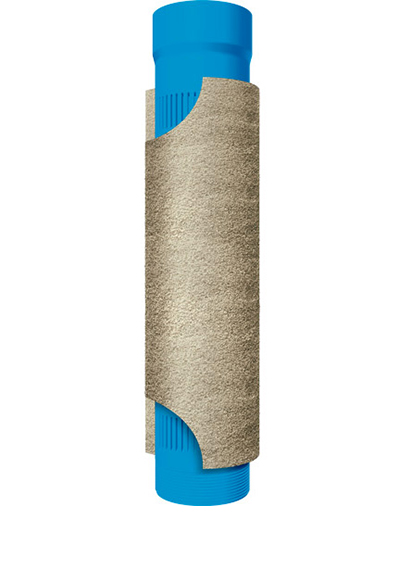

Boode BGP™ - Gravel Coated PVC Screen

Boode BGP is a gravel-coated PVC screen for water well installations in areas where suitable gravel packs are not readily available, but a sand-free water supply is essential, where multiple aquifers are targeted or where installations are very deep and a filter pack needs to be correctly & accurately placed.


Ideal for the rehabilitation of damaged or corroded wells or where a smaller diameter borehole is required.

There is virtually no permeability loss as the powerful waterproof bonding replaces normal capillary retention. The gravel coating consists of carefully selected, uniform silica gravel (>98,6% SiO2).


BGP Screen is available in diameters from 33mm to 400 mm.






Advantages of Boode BGP Screens

  • Uniform gravel coat ensures 100% coverage.
  • Excellent sand control
  • Recommended for rehabilitating damaged or corroded wells.
  • Ideal where a smaller diameter borehole is required
  • Increased collapse resistance

Technical details Boode BGP

Screen outside
diam*
mm		 Outside diam
over gravel
mm		 Gravel
thickness
ca. mm		 Tolerance
-/+ mm		 Length
m		 Approx.
weight
kg/m

33.2 (1”)
41.6 (1¼”)
47.8 (1½”)
50 (1½”)
59.5 (2”)
75 (2½”)
90 (3”)
110 (3½”)
113.8 (4”)
125 (4½”)

140 mm (5”)
160 (5½”)
165 (6”)

180 (6½”)
200 (7”)
225 (8”)
280 (10”)
315 (11”)
330 (12”)
400 (14”)

52
64
72
72
92
93
118
143
143
154
153
169
195
195
197
209
229
256
311
343
359
432

10.95
12.7
13.1
12
17.25
10.50
15
18
16.1
17.5
14.5
15.5
16.5
15.5
16
16.5
16
15.5
15.5
23
13
16

- 0 / + 3
- 0 / + 3
- 0 / + 3
- 0 / + 3
- 0 / + 3
- 0 / + 3
- 0 / + 3
- 0 / + 4
- 0 / + 4
- 0 / + 4
- 0 / + 4
- 0 / + 3
- 0 / + 7
- 0 / + 7
- 0 / + 5
- 0 / + 7
- 0 / + 3
- 0 / + 6
- 0 / + 4
- 0 / + 5
- 0 / + 6
- 0 / + 7

1
1
1
1
1
1
1
1
1
1
2
1
1 - 2 - 2.5
1
2
1 - 2 - 2.5
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2

2.5
3.5
4.0
3.5
6
7
8
10.5
11.5
13.5
13.5
15
16
15
15
17.5
17.5
24.5
35
50
44
51.5


Outside diameter over gravel is an average
* for diameters and wall thicknesses please see PVC screen casing.
